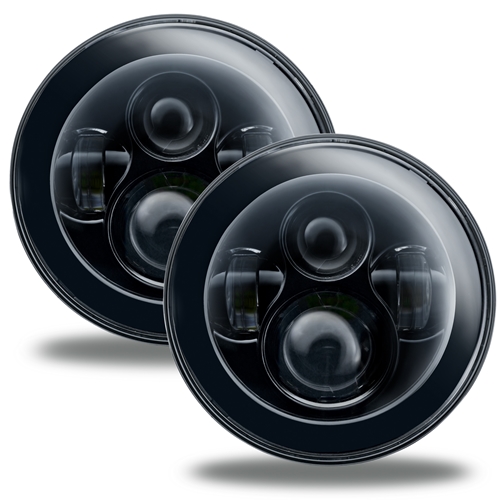

ORACLE 7in High Powered LED Headlights - Black Bezel

Oracle Lighting
This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
ORL-5769-504
Part #:ORL-5769-504
Availability:In Stock
Free Shipping
Rating:
    Fits All Models Listed.

  • Included:(2) ORACLE Lighting 7in High Powered LED Headlights With Black Bezel and H4/H13 Connectors
  • AMP Draw: 2.50 AMPS at 12V DC / 1.30 AMPS at 24V DC
  • Bezel Color: Black
  • Color Temperature: 6000K (Cool White Color)
  • High Beam Lumens: 3600 lm / 4800 Raw lm
  • High Bean Wattage: 40W Normal / 48W Max
  • Input Voltage: 12-24V DC
  • Low Beam Lumens: 2200 lm
  • Low Beam Wattage: 30W Normal / 36W Max
Price: $271.58
  • Premium Performance Phillips Luxeon ZES LEDs
  • Die-Cast Housing with Corrosion Resistant Coating
  • Heavy Duty Solid-State Electronics
  • Hard-coated Polycarbonate Lens
  • Wide Beam Pattern with Sharp Cut-Off Line
  • Easy Plug & Play Installation
  • DOT And SAE Certified
  • 2-Year Manufacturer Warranty

The Ultimate LED replacement headlight option for any vehicle with 7” Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 “Plug and Play” connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization!

Latest Product Improvements

  • Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.
  • No need for Anti-Flicker Wiring Adapters - The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues.
  • Increased Reliability - By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
  • Wider Input Voltage Range - The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.
  • Brighter LED Halos - by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
  • LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.


    • California Residents: Prop 65 Warning

    Customer Reviews

    (0.00)stars out of 5
    # of Ratings: 0
    (Only registered customers can rate)

    ORACLE 7in High Powered LED Headlights - Black Bezel fits the following vehicle(s):

    • 2007 Jeep Wrangler
    • 2008 Jeep Wrangler
    • 2009 Jeep Wrangler
    • 2010 Jeep Wrangler
    • 2011 Jeep Wrangler
    • 2012 Jeep Wrangler
    • 2013 Jeep Wrangler
    • 2014 Jeep Wrangler
    • 2015 Jeep Wrangler
    • 2016 Jeep Wrangler
    • 2017 Jeep Wrangler
    • 2018 Jeep Wrangler JK
